1 Needle 3 Thread Cylinder Bed Overlock Machine with Top Feeder, for General SeamingAZF8403

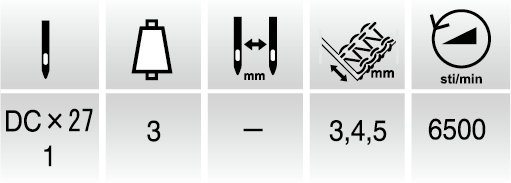

Specifications

Needle System

DCx27

Number of Needles

1

Number of Threads

3

Needle distance (mm)

-

Over-edge seam width (mm)

3, 4, 5

Stitch length (mm)

1.0 - 3.2

Feed regulation

Push button

Differential ratio

1:0.8 - 1:2.3

Differential feed regulation

Lever adjustable

Top feed back & forth movement (mm)

9

Pressor foot lift (mm)

7

Needle stroke (mm)

27.1

Machine speed (sti/min)

8,000

Applications

For General Seaming
