2 Needle 5 Thread "Speed & Dry" Safety Stitch Machine with Top Feeder in Front of Needle & at the Back of Pressor Foot, for General SeamingAZFR8500SD-8

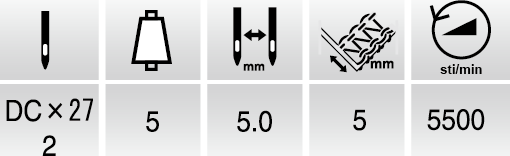

Specifications

Needle System

DCx27

Number of Needles

2

Number of Threads

5

Needle distance (mm)

5.0

Over-edge seam width (mm)

5

Stitch length (mm)

1.0 - 4.0

Feed regulation

Push button

Differential ratio

1:0.6 - 1:3

Differential feed regulation

Lever with micro-adjuster

Top feed back & forth movement (mm)

7

Top feed up & down movement (mm)

3.5 - 6.0

Top feed lift (mm)

7.0 - 7.5

Pressor foot lift (mm)

6

Needle stroke (mm)

26.0

Machine speed (sti/min)

5,500

Applications

For General Seaming

Remarks

With Condense Stitch Function
