2 Needle 4 Thread "Speed & Dry" Safety Stitch Machine with Top Feeder, for Piping with the CordAZF8518SD-8

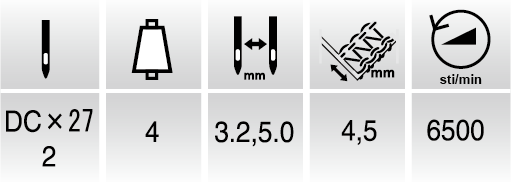

Specifications

Needle System

DCx27

Number of Needles

2

Number of Threads

4

Needle distance (mm)

3.2, 5.0

Over-edge seam width (mm)

4, 5

Stitch length (mm)

1.0 - 4.0

Feed regulation

Push button

Differential ratio

1:0.6 - 1:3

Differential feed regulation

Lever with micro-adjuster

Top feed back & forth movement (mm)

10

Top feed up & down movement (mm)

5.0 - 8.0

Top feed lift (mm)

8.0 - 8.5

Pressor foot lift (mm)

7

Needle stroke (mm)

26.0

Machine speed (sti/min)

6,500

Applications

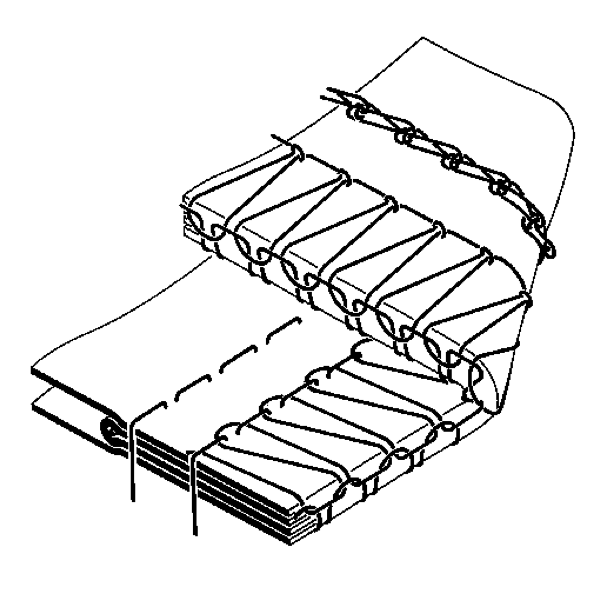

For Piping with the Cord

Remarks

Safety Stitch
