1 Needle 3 Thread "Speed & Dry" Overlock Machine with Top Feeder, for General SeamingAZF8003SD-8

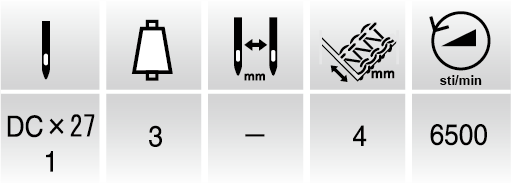

Specifications

Needle System

DCx27

Number of Needles

1

Number of Threads

3

Needle distance (mm)

-

Over-edge seam width (mm)

4

Stitch length (mm)

1.0 - 4.0

Feed regulation

Push button

Differential ratio

1:0.6 - 1:3

Differential feed regulation

Lever with micro-adjuster

Top feed back & forth movement (mm)

10

Top feed up & down movement (mm)

5.0 - 8.0

Top feed lift (mm)

8.0 - 8.5

Pressor foot lift (mm)

7

Needle stroke (mm)

26.0

Machine speed (sti/min)

6,500

Applications

For General Seaming
