"Speed & Dry" Super High Speed Overlock & Safety Stitch Machine with Top FeederAZF8000SD-8 & AZF8500SD-8 class

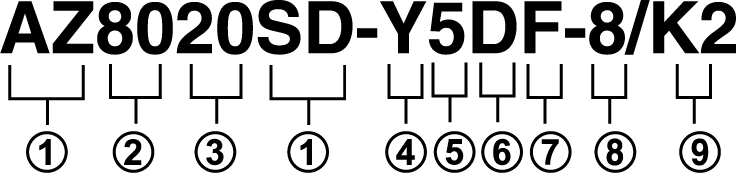

Numbering of Model


  1. Symbol of series
  2. Class No.: 80, 81 = Overlock,  85, 86 = Safety Stitch
  3. Submodel
  4. Needle distance: O = single needle,  X = 2.0 mm,  Y = 2.4 mm,  A = 3.2 mm,  C = 5 mm
  5. Overedge seam width: 4 = 4 mm,  5 = 5 mm,  6 = 6 mm,  7 = 7 mm,  8 = 8 mm
  6. Feeding mode: D = Differential Feed
  7. Type of upper knife: F = Flat knife
  8. Special Specification
  9. Devices

Specifications

Model) Number of Needles) Number of Threads) Needle distance) Over-edge seam width) Stitch length) Differential ratio) Top feed back & forth movement (mm)) Pressor foot lift) Needle stroke) Machine SpeedRemarks

AZF8003SD-8

1 Needle 3 Thread "Speed & Dry" Overlock Machine with Top Feeder, for General Seaming		13-41.0 - 4.01:0.6 - 1:310726.06,500

AZF8020SD-8

2 Needle 4 Thread "Speed & Dry" Overlock Machine with Top Feeder, for General Seaming		242, 2.44, 5, 61.0 - 4.01:0.6 - 1:310726.06,500

AZF8025SD-8

2 Needle 4 Thread "Speed & Dry" Overlock Machine with Top Feeder, for Inserting Reinforcing Tape		241.0 - 4.01:0.6 - 1:310726.06,500

AZF8026SD-8

2 Needle 4 Thread "Speed & Dry" Overlock Machine with Top Feeder, for Piping with the Cord		242.45, 61.0 - 4.01:0.6 - 1:310726.06,500

AZF8028SD-8

2 Needle 4 Thread "Speed & Dry" Overlock Machine with Top Feeder, for general Seaming Anti-Puckering		242, 2.44, 5, 61.0 - 4.01:0.6 - 1:310726.06,500

AZF8120SD-8

2 Needle 4 Thread "Speed & Dry" Overlock Machine with Top Feeder, for Wide Seam Width		242.45, 81.0 - 4.01:0.6 - 1:310724.76,500

AZF8500SD-8

2 Needle 5 Thread "Speed & Dry" Safety Stitch Machine with Top Feeder, for General Seaming		253.2, 5.04, 5, 61.0 - 4.01:0.6 - 1:310726.06,500Safety Stitch

AZF8513SD

2 Needle 5 Thread "Speed & Dry" Safety Stitch Machine with Top Feeder & Short-stitching Function, for Jeans		254, 51.0 - 4.01:0.6 - 1:310726.06,500Safety Stitch, Short-stitching Function

AZF8518SD-8

2 Needle 4 Thread "Speed & Dry" Safety Stitch Machine with Top Feeder, for Piping with the Cord		243.2, 5.04, 51.0 - 4.01:0.6 - 1:310726.06,500Safety Stitch

AZF8520SD-8

Multi-purpose 3 Needle 6 Thread "Speed & Dry" Safety Stitch Machine with Top Feeder		362.4, 3.26, 7, 81.0 - 4.01:0.6 - 1:310726.06,500Safety Stitch

AZF8600SD

2 Needle 5 Thread "Speed & Dry" Safety Stitch Machine with Top Feeder, for Jeans		255.05, 72.0 - 5.01:0.6 - 1:38727.16,000Safety Stitch

AZF8611SD

2 Needle 5 Thread "Speed & Dry" Safety Stitch Machine with Top Feeder, for Attaching Zipper Tape		255.052.0 - 5.01:0.6 - 1:38727.16,000Safety Stitch, with Floating Pressor Foot

AZF8620SD

Multi-purpose 3 Needle 6 Thread "Speed & Dry" Safety Stitch Machine with Top Feeder, for Jeans		363.2, 5.072.0 - 5.01:0.6 - 1:38727.16,000Safety Stitch

AZFR8500SD-8

2 Needle 5 Thread "Speed & Dry" Safety Stitch Machine with Top Feeder in Front of Needle & at the Back of Pressor Foot, for General Seaming		255.051.0 - 4.01:0.6 - 1:37626.05,500With Condense Stitch Function

AZR8920SD

2 Needle 4 Thread "Speed & Dry" Double Chain Stitch Machine with Top Feeder at the Back of Pressor Foot, for Binding Tape on the Edge of Pocket Bag		245.0-1.0 - 4.01:0.6 - 1:310726.06,500
