中文 "Speed & Dry" Super High Speed Overlock & Safety Stitch Machine with Top FeederAZF8000SD-8 & AZF8500SD-8 class
The 3 in 1 Overlock & Safety Stitch Machines Series with Top and Bottom Feeders with the Perfect Path to Feed Fabric Securely that Offers High Speed, Stain Free Dry Finish and Higher Durability.
- Yamato AZF8000SD-8 & AZF8500SD-8 series realize high productivity by high speed operation, high quality garment by stain-free dry finish and long lifetime machines, thanks to Yamato's signature "Speed + Dry" Technology (a.k.a. SD Technology).
- Yamato AZF8000SD-8 & AZF8500SD-8 series are the 3 in 1 overlock and safety stitch machine series that offers high speed, stain free dry finish and higher durability.
- Upper and lower feed dogs make the perfect path to feed the fabric securely. They eliminate damages on light or delicate fabrics, without plyshifts even on all fabrics hard to feed. Also, curved sewing operations can be easily done.
Top and Bottom Feeders with the Perfect Path to Feed Fabric Securely
Upper and lower feed dogs make the perfect path to feed the fabric securely. They eliminate damages on light or delicate fabrics, without plyshifts even on all fabrics hard to feed. Also, curved sewing operations can be easily done.
Prevent Oil Leakage for High Quality Garments
Prevent oil stains by circulated minimal liquid lubrication and the special sealing technology!
Long Lifetime Machine
High durability thanks to the efficient lubrication made by the unique oil circulation system and high-tech processed parts.
SPEED + DRY FINISH
Top Feeder for Further Enhanced Quality and Applicability for Different Sewing Conditions
IDEAL STITCH PERFORMANCE
EASE OF USE & EASY MAINTENANCE
SPEED + DRY FINISH
The 3 in 1 Overlock & Safety Stitch Machines that Offers High Speed, Stain Free Dry Finish and Higher Durability.
Yamato AZF8000SD-8 & AZF8500SD-8 series realize high productivity by high speed operation, high quality garment by stain-free dry finish and long lifetime machines, thanks to Yamato's signature "Speed + Dry" Technology (a.k.a. SD Technology).
Yamato AZF8000SD-8 & AZF8500SD-8 series are the 3 in 1 overlock and safety stitch machine series that offers high speed, stain free dry finish and higher durability.
High-Speed and Durability are Guaranteed by the High-tech Processing and the Controlled Circulation.
High-tech processing parts which greatly reduce frictions as same as so-called "dry head" machines are introduced on the needle bar and the upper looper mechanism. A smooth driving is achieved by minimal liquid lubrication compared with the conventional models.
Moreover, high durability and high-speed of 8,000 sti/min are guaranteed because of an efficient lubrication made by the unique circulation system.
Comparison of the friction

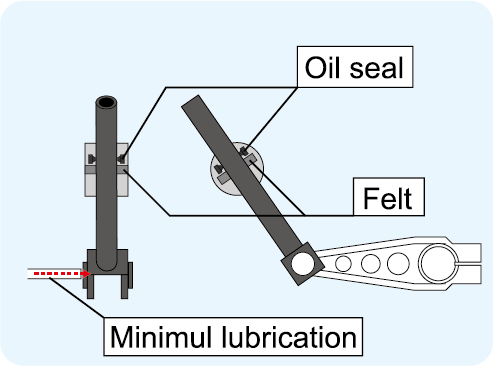

Prevent Stains by the Circulated Minimal Liquid Lubrication and the Special Sealing Technology!
Not only minimal lubrication but also the special sealing technology is introduced on the needle bar and the upper looper mechanism. While feed a steady small amount, oil is wiped away with the oil seal before the moving parts are exposed. The wiped oil is circulated and doesn't leak outside.
Upper looper
Top Feeder for Further Enhanced Quality and Applicability for Different Sewing Conditions
High Quality Finish
It eliminates damages on light or delicate fabrics, without plyshifts even on all fabrics hard to feed. Alo, curved sewing operations can be easily done.
Higher Productivity
For gathering and heavy weight material, upper and lower feeder enables easy and beautiful performance with high speed.
Perfect Path to Feed the Fabric Securely
Upper and lower feed dogs make the perfect path to feed the fabric securely. Height of the top feeder can be easily adjusted depending on the thicness of material to be sewn.
Simple Release Pressor Foot System
Top feeder machines are equipped with simple release pressor foot system, which can lift up the top feed dog by locking lever with one hand.
IDEAL STITCH PERFORMANCE
Ideal Stitch Performance
You can obtain neatly tightened and highly durable finish. Soft and elastic seam is also available as the stitch is formed without stress on each thread.
Needle Thread Take-up Mechanism Activated by Upper Knife
Looper thread take-up mechanism co-operating with looper timing produces straight and stretchable soft-chain with balanced stitch formation.
VERSATILITY
Versatility (AZF8120SD-8)
Seam witdth from 5 mm to 8 mm is convertible by simple replacement of the stitch plate and the pressor foot tongue, without any adjustments.
Equipping Needle Clamp for 2 Needle Specifications as Standard
Needle clamp for 2 needle specifications is equipped even on single needle model. Therefore, change-over from single needle use to 2 needle use can be easily provide.
EASE OF USE & EASY MAINTENANCE
Easy setup and maintenance
Feed dog angle adjustment
The feed dog tilt is easy to tilt up or down from outside of the machine depending on the sewing conditions.
Upper looper bar adjustment
Easier access to adjusting screw for less downtime in addressing different sewing conditions.
Lower looper holder adjustment
Easy adjustment of lower looper with the micro-adjuster.
SC18
Self Cleaning System
Prevent oil stain by greasy dust
SC18 is the Self Cleaning System for overlock & safety stitch machines that prevents oil stain by greasy dust.
SC18 eliminates accumulating of dust around the lower knife and the area under stitch plate and ensures clean operation environment.
HR Needle Cooling Device is Now Built-in
Sealed compact design needle cooling device eliminates dust or alien substances, as the result it ensures constant cooling needle.
