2 Needle 5 Thread "Speed & Dry" Safety Stitch Machine for Sleeve Attaching, with Floating Pressor FootAZ8560SD-8

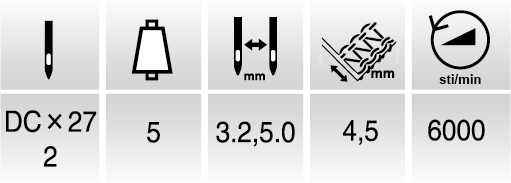

Specifications

Needle System

DCx27

Number of Needles

2

Number of Threads

5

Needle distance (mm)

3.2, 5.0

Over-edge seam width (mm)

4, 5

Stitch length (mm)

1.0 - 4.0

Feed regulation

Push button

Differential ratio

1:0.6 - 1:2.3

Differential feed regulation

Lever with micro-adjuster

Pressor foot lift (mm)

6

Needle stroke (mm)

24.0

Machine speed (sti/min)

6,000

Applications

For Sleeve Attaching

Remarks

Safety Stitch, with Floating Pressor Foot
