Multi-purpose 3 Needle 6 Thread "Speed & Dry" Safety Stitch MachineAZ8520SD-8

AZ8520SD-8

Multi-purpose 3 Needle 6 Thread "Speed & Dry" Safety Stitch Machine


Multi-purpose 3 Needle Safety Stitch machine that is capable for 2 or 3 needle safety stitch and 1 or 2 needle overlock stitching.
For woven and knitted material.

(3-22)-3本針インターロック(2152).png AZ8520SD_Spec@3x.png

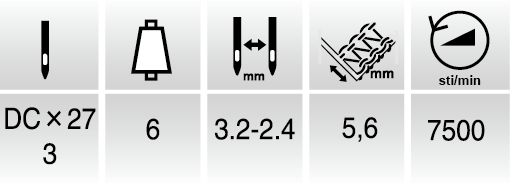

Specifications

AZ8520SD-8

Multi-purpose 3 Needle 6 Thread "Speed & Dry" Safety Stitch Machine

Needle System
DCx27
Number of Needles
3
Number of Threads
6
Needle distance (mm)
3.2 + 2.4
Over-edge seam width (mm)
5, 6
Stitch length (mm)
1.0 - 4.0
Feed regulation
Push button
Differential ratio
1:0.6 - 1:2.3
Differential feed regulation
Lever with micro-adjuster
Pressor foot lift (mm)
5.5
Needle stroke (mm)
24.0
Machine speed (sti/min)
7,500
Applications
Multi-purpose
Remarks
Safety Stitch
