中文 3(2) Needle 5(4) Thread Cylinder Bed Interlock Stitch Machine for Hemming with Top Feeder, Left Hand Fabric Trimmer and Active Thread ControlVGS3721-8F
VGS3721-8F
3(2) Needle 5(4) Thread Cylinder Bed Interlock Stitch Machine for Hemming with Top Feeder, Left Hand Fabric Trimmer and Active Thread Control

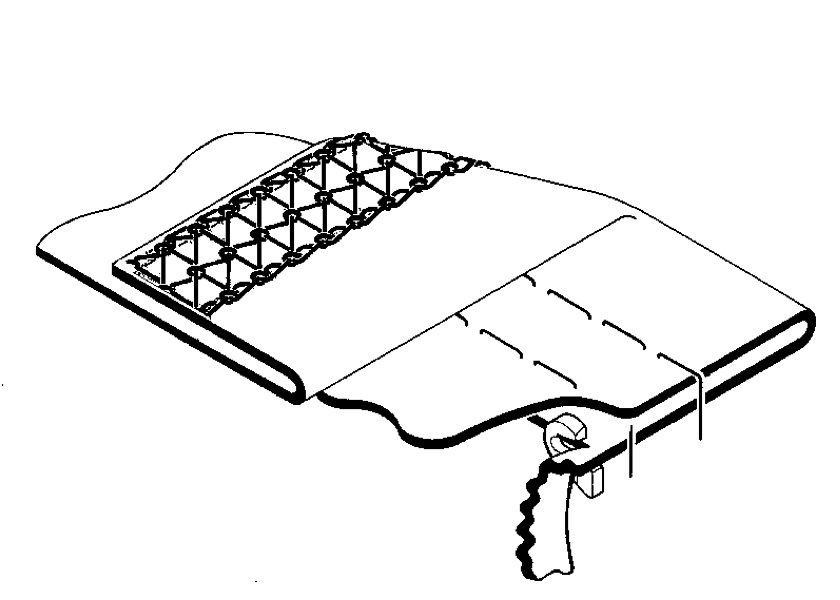

Equipped with fabric trimmer to trim folded edge of hem for uniform finish.
Downsized trimmer and newly designed sewing parts ensure smooth operation and stitch-on-stitch overlapping. Also, trimming margin can be held down and waste of material is minimized.
Epoch-Making Versatility of VG series with Left Hand Fabric Trimmer
Micro Adjuster
Trimming position is easily adjustable while keeping engagement of knives and is also applicable for different hemming styles with a little downtime.
Movement of fabric trimmer can be cancelled easily when trimming is not necessary.
Movement of fabric trimmer can be cancelled easily when trimming is not necessary. No re-adjustment required when using the trimmer again.
Also, whole trimming mechanism can be removed and the machine can be converted into normal cylinder bed machine by exchanging covers and sewing parts.
High efficiency for your equipment investment is obtained.

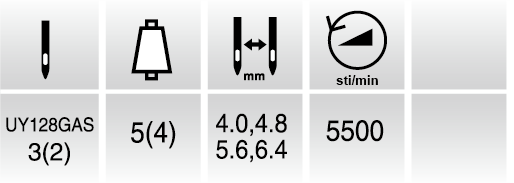

Specifications
VGS3721-8F
3(2) Needle 5(4) Thread Cylinder Bed Interlock Stitch Machine for Hemming with Top Feeder, Left Hand Fabric Trimmer and Active Thread Control
- Needle System
- UY128GAS
- Number of Needles
- 3 (2)
- Number of Threads
- 5 (4)
- Needle distance (mm)
- 4.8, 5.6, 6.4 (3.2, 4.0)
- Stitch length (mm)
- 1.4 - 3.6
- Feed regulation
- Adjusting screw (with micro adjuster)
- Differential ratio
- 1:0.7 - 1:2.0
- Differential feed regulation
- Lever with micro-adjuster
- Pressor foot lift (mm)
- 7.0
- Needle stroke (mm)
- 31.0
- Machine speed (sti/min)
- 5,500
- Applications
- For Hemming
- Remarks
- With Left Hand Fabric Trimmer
