中文 3(2) Needle 5(4) Thread Unique Cylinder Bed Interlock Stitch Machine for Covering with Top Feeder with Active Thread ControlVGS2790-8F
VGS2790-8F
3(2) Needle 5(4) Thread Unique Cylinder Bed Interlock Stitch Machine for Covering with Top Feeder with Active Thread Control

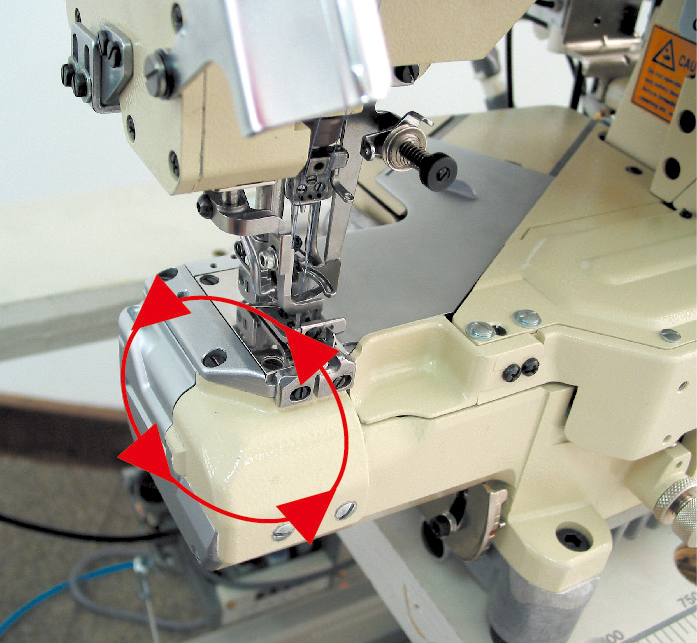

Subclass of VGS series with unique streamline cylinder bed for covering.
Smoother handling can be achieved for covering operation on small circular portion such as neckline of sweatshirts and etc. Easier access to internal mechanism than conventional models for easier maintenance.

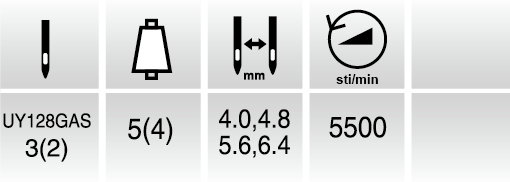

Specifications
VGS2790-8F
3(2) Needle 5(4) Thread Unique Cylinder Bed Interlock Stitch Machine for Covering with Top Feeder with Active Thread Control
- Needle System
- UY128GAS
- Number of Needles
- 3 (2)
- Number of Threads
- 5 (4)
- Needle distance (mm)
- 4.8, 5.6, 6.4 (3.2, 4.0)
- Stitch length (mm)
- 1.4 - 3.6
- Feed regulation
- Adjusting screw (with micro adjuster)
- Differential ratio
- 1:0.6 - 1:1.8
- Differential feed regulation
- Lever with micro-adjuster
- Pressor foot lift (mm)
- 7.0
- Needle stroke (mm)
- 31.0
- Machine speed (sti/min)
- 5,500
- Applications
- For Covering
- Remarks
- Streamline Cylinder Bed
