中文 3(2) Needle 5(4) Thread Cylinder Bed Interlock Stitch Machine for Hemming, with with Top Feeder with Active Thread ControlVGS2740-8F
VGS2740-8F
3(2) Needle 5(4) Thread Cylinder Bed Interlock Stitch Machine for Hemming, with with Top Feeder with Active Thread Control
Exclusive model for hemming operation equipped with sewing parts.
Unique layout of feed dogs for flat and neat finish of edge of hem. Relaxed and streatchable stitch formation.
For wide variety of applications
With Yamato Active Thread Control, which controls each sewing thread to form well-balanced stitch with minimum stress, you will be satisfied with finished garments in wide variety of sewing conditions, from soft and elastic seam suitable for microfiber to neatly tightened seam for outer knitwear, with visible adjustment.

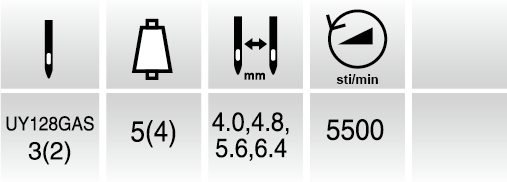

Specifications
VGS2740-8F
3(2) Needle 5(4) Thread Cylinder Bed Interlock Stitch Machine for Hemming, with with Top Feeder with Active Thread Control
- Needle System
- UY128GAS
- Number of Needles
- 3 (2)
- Number of Threads
- 5 (4)
- Needle distance (mm)
- 4.8, 5.6, 6.4 (3.2, 4.0)
- Stitch length (mm)
- 1.4 - 3.6
- Feed regulation
- Adjusting screw (with micro adjuster)
- Differential ratio
- 1:0.6 - 1:1.8
- Differential feed regulation
- Lever with micro-adjuster
- Pressor foot lift (mm)
- 7.0
- Needle stroke (mm)
- 31.0
- Machine speed (sti/min)
- 5,500
- Applications
- For Hemming
