Flat Bed Interlock Stitch Machine with Active Thread Control & Top FeederVFS2500-8 series

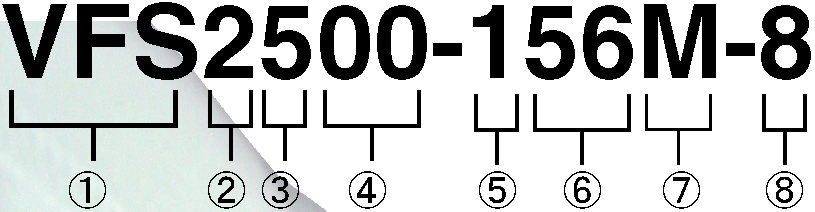

Numbering on Model


  1. Symbol of Series
  2. Class No.
  3. Number of needles: 4 = 2 needles,  5 = 3 needles
  4. Submodel by application
  5. Top Cover Thread Mechanism: 0 = Without Top Cover Thread Mechanism,  1 = With Top Cover Thread Mechanism
  6. Needle Distance: 32 = 3.2 mm,  40 = 4.0 mm,  48 = 4.8 mm,  56 = 5.6 mm,  64 = 6.4 mm
  7. Shape of Stitch Tongue on Stitch Plate: M = For medium weight fabrics
  8. Special Specifications
  9. Devices

Specifications

Model) Number of Needles) Number of Threads) Needle distance) Stitch length) Differential ratio) Top feed back & forth movement (mm)) Pressor foot lift) Needle stroke) Machine SpeedRemarks

VFS2500-8

3 Needle 5 Thread Flat Bed Interlock Stitch Machine with Active Thread Control & Top Feeder
354.8, 5.6, 6.41.4 - 3.61:0.7 - 1:2.01.6 - 7.06.5315,500With Top Feeder

VFS2400-8

2 Needle 4 Thread Flat Bed Interlock Stitch Machine with Active Thread Control & Top Feeder
243.2, 4.01.4 - 3.61:0.7 - 1:2.01.6 - 7.07.5315,500With Top Feeder

VFS2503-8

3 Needle 5 Thread Flat Bed Interlock Stitch Machine for Binding with Active Thread Control & Top Feeder
354.8, 5.6, 6.41.4 - 3.61:0.7 - 1:2.01.6 - 4.06.0315,500With Top Feeder

VFS2403-8

2 Needle 4 Thread Flat Bed Interlock Stitch Machine for Binding with Active Thread Control & Top Feeder
243.2, 4.01.4 - 3.61:0.7 - 1:2.01.6 - 4.07.5315,500With Top Feeder

VFS2513-8

3 Needle 5 Thread Flat Bed Interlock Stitch Machine for Covering with Active Thread Control & Top Feeder
354.8, 5.6, 6.41.4 - 3.61:0.7 - 1:2.01.6 - 5.05.5315,500With Top Feeder

VFS2413-8

2 Needle 4 Thread Flat Bed Interlock Stitch Machine for Covering with Active Thread Control & Top Feeder
243.2, 4.01.4 - 3.61:0.7 - 1:2.01.6 - 5.05.5315,500With Top Feeder
