中文 3(2) Needle 5(4) Thread Small Cylinder Bed Interlock Stitch Machine for Hemming with Active Thread Control with Variable Top Feeder & Left Hand Fabric TrimmerVES3712-8F
VES3712-8F
3(2) Needle 5(4) Thread Small Cylinder Bed Interlock Stitch Machine for Hemming with Active Thread Control with Variable Top Feeder & Left Hand Fabric Trimmer
With the Left Hand Fabric Trimmer, VES3712-8F equips Versatile Fabric Trimmer Mechanism Adjustable upper knife movement allows you to be ready for from fleece to microfiber. Whole trimming mechanism of VES3712-8F is removable in case edge trimming is not necessary.
Variable Top Feeder prevents sewn works (even if it is made with recent stretchable and slippery fabrics) from being twisted and distorted. Also, ensures stress-free operation with positive fabric transport.
Small Cylinder Bed ensures easy handling even for small circular articles, such as pre-closed sleeve of T-shirt, Leg opening of Boxer brief and etc.

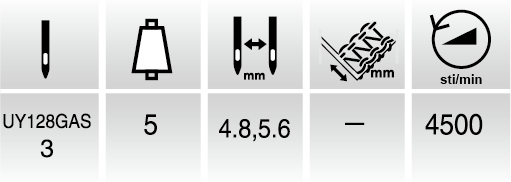

Specifications
VES3712-8F
3(2) Needle 5(4) Thread Small Cylinder Bed Interlock Stitch Machine for Hemming with Active Thread Control with Variable Top Feeder & Left Hand Fabric Trimmer
- Needle System
- UY128GAS
- Number of Needles
- 3 (2)
- Number of Threads
- 5 (4)
- Needle distance (mm)
- 4.8, 5.6 (3.2, 4.0)
- Stitch length (mm)
- 1.4 - 4.2
- Feed regulation
- Lever
- Differential ratio
- 1:0.8 - 1:1.4
- Differential feed regulation
- Lever
- Top feed back & forth movement (mm)
- 1.6 - 7.0
- Top feed up & down movement (mm)
- 3.5 - 6.0
- Pressor foot lift (mm)
- 7.5
- Needle stroke (mm)
- 31.0
- Machine speed (sti/min)
- 4,500
- Applications
- For Hemming
- Remarks
- With Left Hand Fabric Trimmer
