中文 3(2) Needle 5(4) Thread Small Cylinder Bed Interlock Stitch Machine for Covering with Active Thread Control with Variable Top FeederVES2713-8F
VES2713-8F
3(2) Needle 5(4) Thread Small Cylinder Bed Interlock Stitch Machine for Covering with Active Thread Control with Variable Top Feeder
The small cylinder machine is applicable for covering on small circular articles, such as cuffs and neckline of sweatshirts, and ankles of sweat pants. Also, thanks to its short cylinder length, little obstruction is worried when covering armholes of raglan sleeve shirts.

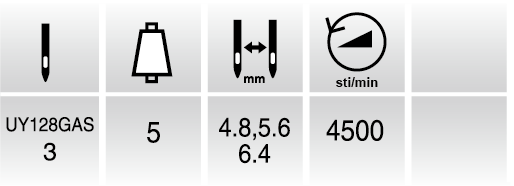

Specifications
VES2713-8F
3(2) Needle 5(4) Thread Small Cylinder Bed Interlock Stitch Machine for Covering with Active Thread Control with Variable Top Feeder
- Needle System
- UY128GAS
- Number of Needles
- 3 (2)
- Number of Threads
- 5 (4)
- Needle distance (mm)
- 4.8, 5.6, 6.4 (3.2, 4.0)
- Stitch length (mm)
- 1.4 - 4.2
- Feed regulation
- Lever
- Differential ratio
- 1:0.8 - 1:1.4
- Differential feed regulation
- Lever
- Top feed back & forth movement (mm)
- 1.6 - 7.0
- Top feed up & down movement (mm)
- 3.5 - 6.0
- Pressor foot lift (mm)
- 7.5
- Needle stroke (mm)
- 31.0
- Machine speed (sti/min)
- 4,500
- Applications
- For Covering
