中文 3(2) Needle 5(4) Threads Small Cylinder Bed Interlock Stitch Machine for General Seaming & Hemming with Active Thread Control with Variable Top FeederVES2711-8F
VES2711-8F
3(2) Needle 5(4) Threads Small Cylinder Bed Interlock Stitch Machine for General Seaming & Hemming with Active Thread Control with Variable Top Feeder
This model is applicable for hemming on small tubular articles, such as cuffs of long sleeve shirts and ankles of pants.

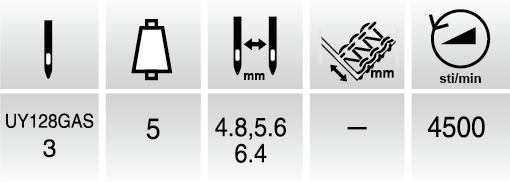

Specifications
VES2711-8F
3(2) Needle 5(4) Threads Small Cylinder Bed Interlock Stitch Machine for General Seaming & Hemming with Active Thread Control with Variable Top Feeder
- Needle System
- UY128GAS
- Number of Needles
- 3 (2)
- Number of Threads
- 5 (4)
- Needle distance (mm)
- 4.8, 5.6, 6.4 (3.2, 4.0)
- Stitch length (mm)
- 1.4 - 4.2
- Feed regulation
- Lever
- Differential ratio
- 1:0.8 - 1:1.4
- Differential feed regulation
- Lever
- Top feed back & forth movement (mm)
- 1.6 - 7.0
- Top feed up & down movement (mm)
- 3.5 - 6.0
- Pressor foot lift (mm)
- 7.5
- Needle stroke (mm)
- 31.0
- Machine speed (sti/min)
- 4,500
- Applications
- For General Seaming & Hemming
