Small Cylinder Bed Interlock Stitch Machine with Active Thread Control & Variable Top FeederVES-8F series

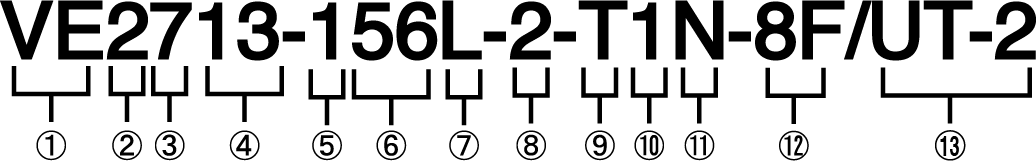

Numbering on Model


  1. Symbol of Series
  2. Class No.
  3. Number of needles: 7 = 2 & 3 needles
  4. Submodel by application
  5. Top Cover Thread Mechanism: 0 = Without Top Cover Thread Mechanism,  1 = With Top Cover Thread Mechanism
  6. Needle Distance: 32 = 3.2 mm,  40 = 4.0 mm,  48 = 4.8 mm,  56 = 5.6 mm,  64 = 6.4 mm
  7. Shape of Stitch Tongue on Stitch Plate: M = For medium weight fabrics,  L = For light weight fabrics,  S = For special specifications
  8. Special Features: -2 = Needle stroke: 33 mm,  -2 = Needle stroke: 31 mm
  9. Covering Style
  10. Feed Layout
  11. Coarseness of Feed Dogs: No indication (Standard),  N = 1.6 mm (Standard),  A = 2.5 mm (Coarse Mesh)
  12. With Active Thread Control
  13. Devices

Sewing Parts and Fabric Guides According to Various Seam Style


Specifications

Model) Number of Needles) Number of Threads) Needle distance) Stitch length) Differential ratio) Top feed back & forth movement (mm)) Pressor foot lift) Needle stroke) Machine SpeedRemarks

VES2711-8F

3(2) Needle 5(4) Threads Small Cylinder Bed Interlock Stitch Machine for General Seaming & Hemming with Active Thread Control with Variable Top Feeder		3 (2)5 (4)4.8, 5.6, 6.4 (3.2, 4.0)1.4 - 4.21:0.8 - 1:1.41.6 - 7.07.531.04,500

VES3712-8F

3(2) Needle 5(4) Thread Small Cylinder Bed Interlock Stitch Machine for Hemming with Active Thread Control with Variable Top Feeder & Left Hand Fabric Trimmer		3 (2)5 (4)4.8, 5.6 (3.2, 4.0)1.4 - 4.21:0.8 - 1:1.41.6 - 7.07.531.04,500With Left Hand Fabric Trimmer

VES2713-8F

3(2) Needle 5(4) Thread Small Cylinder Bed Interlock Stitch Machine for Covering with Active Thread Control with Variable Top Feeder		3 (2)5 (4)4.8, 5.6, 6.4 (3.2, 4.0)1.4 - 4.21:0.8 - 1:1.41.6 - 7.07.531.04,500
