4 Needle 6 Thread Flatbed Flatseamer with Active Thread ControlVFK series

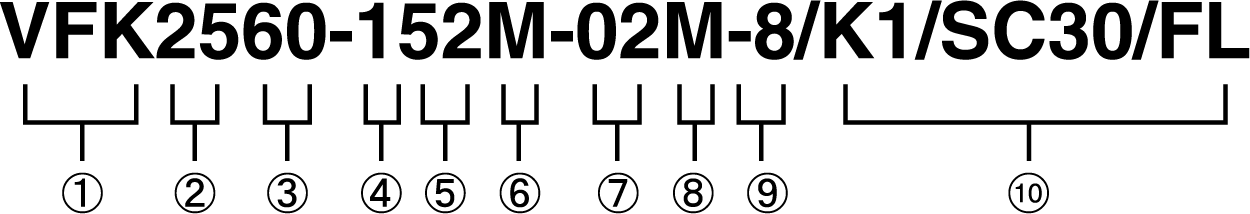

Numbering on Model:


  1. Symbol of Series
  2. Class Number
  3. Submodel by Application
  4. Top Cover Thread Mechanism: 1 = with Top Cover Thread Mechanism
  5. Needle Distance: 52 = 5.2 mm, 60 = 6.0 mm
  6. Shape of Stitch Tongue on Stitch Plate
  7. Fabric Trimming Method: 02 = Both Cut
  8. Applicable Fabric Weight: M = Lightweight to Mediumweight Fabric
  9. Active Thread COntrol: -8 = with Active THread Control
  10. Device(s)

Specifications

Model) Number of Needles) Number of Threads) Needle distance) Stitch length) Differential ratio) Pressor foot lift) Needle stroke) Machine SpeedRemarks

VFK2560-01M-8

4 Needle 6 Thread Flatbed Flatseamer Single Cut with Active Thread Control		465.2, 6.01.4 - 3.61:0.6 - 1:1.65.031.04,000Cutting one side fabric edge

VFK2560-02M-8

4 Needle 6 Thread Flatbed Flatseamer Both Cut with Active Thread Control		465.2, 6.01.4 - 3.61:0.6 - 1:1.65.031.04,000Cutting both side fabric edge
