Economy Type "Speed & Dry" Overlock Machine & Safety Stitch MachineZ7000SD-8 & Z7500SD-8 class

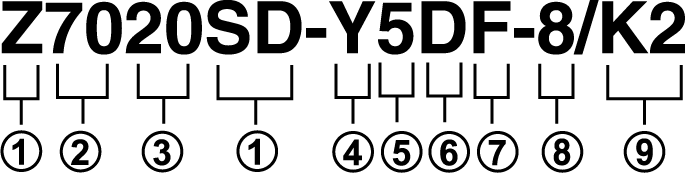

Numbering of Model


  1. Symbol of series
  2. Class No.: 70, 71 = Overlock,  75 = Safety Stitch
  3. Submodel
  4. Needle distance: O = single needle,  X = 2.0 mm,  Y = 2.4 mm,  A = 3.2 mm,  C = 5 mm
  5. Overedge seam width: 4 = 4 mm,  5 = 5 mm,  6 = 6 mm,  7 = 7 mm,  8 = 8 mm
  6. Feeding mode: D = Differential Feed
  7. Type of upper knife: F = Flat knife
  8. Special Specification
  9. Devices

Specifications

Model) Number of Needles) Number of Threads) Needle distance) Over-edge seam width) Stitch length) Differential ratio) Pressor foot lift) Needle stroke) Machine SpeedRemarks

Z7003SD-8

Economy Type 1 Needle 3 Thread "Speed & Dry" Overlock Machine for General Seaming		13-41.0 - 4.01:0.6 - 1:2.36.023.77,000

Z7020SD-8

Economy Type 2 Needle 4 Thread "Speed & Dry" Overlock Machine for General Seaming		242, 2.44, 51.0 - 4.01:0.6 - 1:2.36.023.77,000

Z7025SD-8

Economy Type 2 Needle 4 Thread "Speed & Dry" Overlock Machine for Inserting Reinforcing Tape		242, 2.44, 51.0 - 4.01:0.6 - 1:2.36.023.77,000

Z7120SD-8

Economy Type 2 Needle 4 Thread "Speed & Dry" Overlock Machine for Wide Seam Width		242.45, 6, 7, 81.0 - 4.01:0.6 - 1:2.36.024.76,500

Z7125SD-8

Economy Type 2 Needle 4 Thread "Speed & Dry" Overlock Machine for Inserting Reinforcing Tape, for Wider Seam Width		242.45, 6, 7, 81.0 - 4.01:0.6 - 1:2.36.024.76,500

Z7500SD-8

Economy Type 2 Needle 5 Thread "Speed & Dry" Safety Stitch Machine for General Seaming		253.2, 5.04, 51.0 - 4.01:0.6 - 1:2.36.023.77,000Safety Stitch

Z7520SD-8

Economy Type Multi-purpose 3 Needle 6 Thread "Speed & Dry" Safety Stitch Machine		363.2 + 2.461.0 - 4.01:0.6 - 1:2.35.523.77,000Safety Stitch
