Economy type High Speed Cylinder Bed Interlock Stitch MachineVC1700-8F class

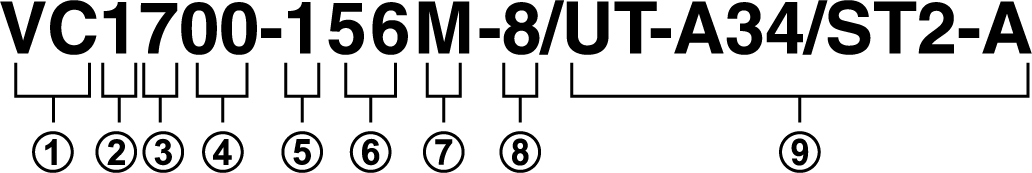

Numbering on Models


  1. Symbol of Series
  2. Class No.
  3. Number of needles: 7 = 2 & 3 needles
  4. Submodel by application
  5. Top Cover Thread Mechanism: 1 = With Top Cover Thread Mechanism
  6. Needle Distance: 40 = 4.0 mm,  48 = 4.8 mm,  56 = 5.6 mm,  64 = 6.4 mm
  7. Shape of Stitch Tongue on Stitch Plate: M = Standard,  L = Light Weight Fabric,  S = For Lace Attachment
  8. Special Specification
  9. Devices

Specifications

Model) Number of Needles) Number of Threads) Needle distance) Stitch length) Differential ratio) Pressor foot lift) Needle stroke) Machine Speed

VC1700-8F

Economy Type 3(2) Needle 5(4) Thread Cylinder Bed Interlock Stitch Machine for General Seaming & Hemming		3 (2)5 (4)4.8, 5.6, 6.4 (3.2, 4.0)1.4 - 3.61:0.3 - 1:2.96.0 (7.5)316,000

VC1713-8F

Economy Type 3(2) Needle 5(4) Thread Cylinder Bed Interlock Stitch Machine for Covering		3 (2)5 (4)4.8, 5.6, 6.4 (3.2, 4.0)1.4 - 3.61:0.3 - 1:2.96.0 (7.5)316,000
