Flat Bed 3 Needle Interlock Stitch MachineCF series

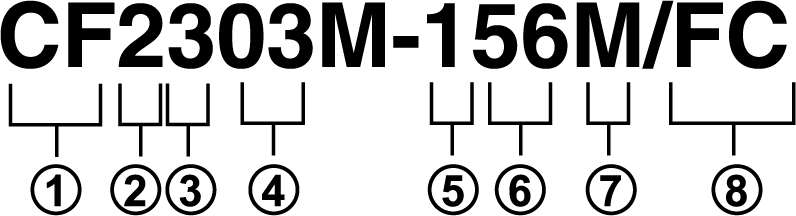

Numbering of Model


  1. Symbol of Series
  2. Class No.
  3. Number of needles: 3 = 2 / 3 needles
  4. Submodel by application
  5. Top Cover Thread Mechanism: 1 = With Top Cover Thread Mechanism
  6. Needle Distance: 56 = 5.6 mm
  7. Shape of Stitch Tongue on Stitch Plate: M = Standard,  S = For Lace Attachment
  8. Devices

Specifications

Model) Number of Needles) Number of Threads) Needle distance) Stitch length) Differential ratio) Pressor foot lift) Needle stroke) Machine SpeedRemarks

CF2300M

3(2) Needle 5(4) Thread Flat Bed Interlock Stitch Machine for General Seaming		3 (2)5 (4)5.6, 6.4 (3.2, 4.0, 4.8)1.4 - 3.61:0.7 - 1:2.07.0315,500

CF2303M

3(2) Needle 5(4) Thread Flat Bed Interlock Stitch Machine for Binding		3 (2)5 (4)5.6, 6.4 (3.2, 4.0, 4.8)1.4 - 3.61:0.7 - 1:2.07.0315,500

CF2339M-1

3(2) Needle 5(4) Thread Flat Bed Interlock Stitch Machine for Attaching Lace		3 (2)5 (4)5.6, 6.4 (3.2, 4.0, 4.8)1.4 - 3.61:0.7 - 1:2.04.0315,000with Right Hand Fabric Trimmer & Metering Device

CF2339M-1-5

3(2) Needle 5(4) Thread Flat Bed Interlock Stitch Machine for Attaching Lace		3 (2)5 (4)5.6, 6.4 (3.2, 4.0, 4.8)1.4 - 3.61:0.7 - 1:2.04.0315,000with Right Hand Fabric Trimmer
