Multi Needle Machine with Puller for Inserting (attaching) Elastic tapeVC2840P, VC2845P & VC3845P

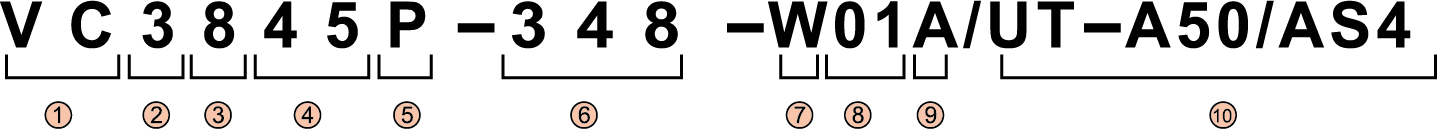

1. Symbol of series
2. Class No.: 2 = without right hand knife,  3 = with right hand knife
3. Multi needle
4. Sub model by use: 40 = For hemming on sweat pants etc, on elastic pre-attached by overlock machines.  45 = For inserting endless elasti tape to men's briefs, sweat pants etc. (tape width: up to 30 mm)
5. Rear puller: P = with rear puller, No indication = without rear puller
6. Needle distance: 348 = 34.8 mm, 188 = 18.8 mm, 308 = 30.8 mm, 254 = 25.4 mm, 172 = 17.2 mm, 340 = 34.0 mm, 303 = 30.3 mm, 280 = 28.0 mm
7. Type of needle row
8. Pitch of each needle
9. Seam style
10. Devices

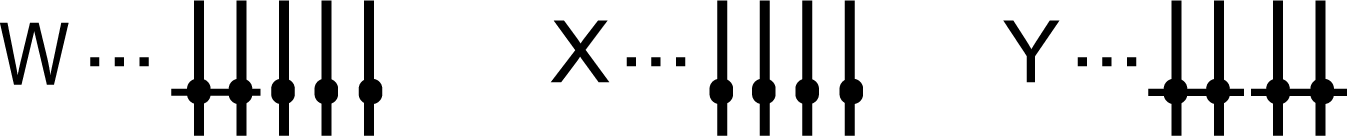

Type of needle row

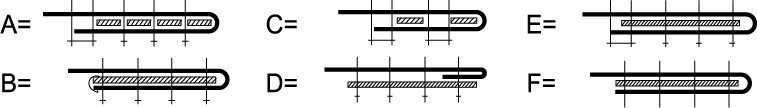

Seam style

Note: B = Elastic is pre-attached by overlock machine in the preceding process.
