4 Needle 8 Thread Needle Feeding Double Chain Stitch Machine for Attaching Waist Band of Jeans, with Puller (P = Plastic Upper Tooth Rollers)MG2004P

MG2004P & MG2004PS

4 Needle 8 Thread Needle Feeding Double Chain Stitch Machine for Attaching Waist Band of Jeans, with Puller (P = Plastic Upper Tooth Rollers, PS = Steel Upper Tooth Rollers)





MG series includes a base of the swing-out folder and a swing-out folder bracket as standard accessories.  Folders are not included in the machine head.

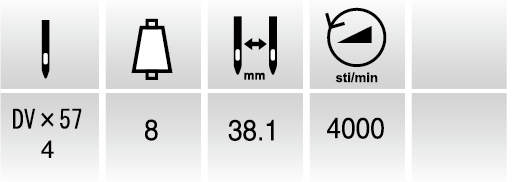

Specifications

MG2004P

4 Needle 8 Thread Needle Feeding Double Chain Stitch Machine for Attaching Waist Band of Jeans, with Puller (P = Plastic Upper Tooth Rollers)

Needle System
DVx57
Number of Needles
4
Number of Threads
8
Needle distance (mm)
4.8 - 50.8
Stitch length (mm)
2.1 - 6.4
Feed regulation
Push button
Pressor foot lift (mm)
9.0
Needle stroke (mm)
32.0
Machine speed (sti/min)
4,000 (5,000)
Applications
For Attaching Waist Band of Jeans
Remarks
Please specify needle distance (gauge) when ordering the machine.
