3 Needle 6 Thread Feed-off-the-arm Double Chain Stitch Machine for Lap Seaming of Heavy Weight FabricDT-30-01F

3 Needle 6 Thread Feed-off-the-arm Double Chain Stitch Machine for Lap Seaming of Heavy Weight FabricDT-30-01F

DT-30-01E & DT-30-01F

3 Needle 6 Thread Feed-off-the-arm Double Chain Stitch Machine for Lap Seaming of Heavy Weight Fabric

Needle Distance:

01E = 6.35mm 1/4 inches
01F = 7.14mm 9/32 inches

(5-08)-3本針2重環（タコ巻き縫い用）.png DT-30_App@3x.png DT-30-01E_Spec@3x.png

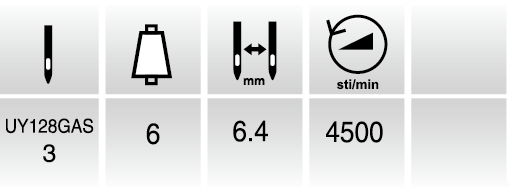

Specifications

DT-30-01F

3 Needle 6 Thread Feed-off-the-arm Double Chain Stitch Machine for Lap Seaming of Heavy Weight Fabric

Needle System: UY128GAS
Number of Needles: 3
Number of Threads: 6
Needle distance (mm): 7.14 (9/32 inches)
Stitch length (mm): 2.1 - 4.2
Feed regulation: Lever
Differential ratio: 1:0.7 - 1:3.0
Differential feed regulation: Dial
Pressor foot lift (mm): 7.4
Needle stroke (mm): 33.0
Machine speed (sti/min): 4,500
Applications: For Lap Seaming of Heavy Weight Fabric
