Feed-off-the-Arm, 3 Needle Double Chain Stitch Machine for felling operation of heavy weight garments DT series

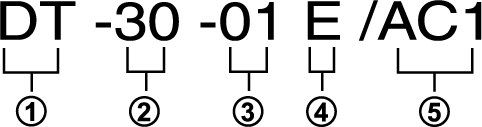

Numbering on Models


  1. Symbol of series
  2. Class No.
  3. Submodel
  4. Needle distance: 01E=6.35mm 1/4 inches, 01F=7.14mm 9/32 inches
  5. Devices

Specifications

Model) Number of Needles) Number of Threads) Needle distance) Stitch length) Differential ratio) Pressor foot lift) Needle stroke) Machine Speed
Model) Number of Needles) Number of Threads) Needle distance) Stitch length) Differential ratio) Pressor foot lift) Needle stroke) Machine Speed

DT-30-01E

3 Needle 6 Thread Feed-off-the-arm Double Chain Stitch Machine for Lap Seaming of Heavy Weight Fabric		366.35 (1/4 inches)2.1 - 4.21:0.7 - 1:3.07.433.04,500

DT-30-01F

3 Needle 6 Thread Feed-off-the-arm Double Chain Stitch Machine for Lap Seaming of Heavy Weight Fabric		367.14 (9/32 inches)2.1 - 4.21:0.7 - 1:3.07.433.04,500
