中文 Sewing Unit for Folding and Attaching of Pockets FacingsAMF Reece PF-2200
The pocket facing machine is used for automatic folding and attaching of pocket facings onto the pocket bags with consistent quality and high productivity.
Applications
The pocket facing machine is used for automa- tic folding and attaching of pocket facings onto the pocket bags with consistent quality and high productivity.
Standard Features
- The Stitching Length can be Adjusted from the Panel or Controlled Automatically by a Photocell
- Folding Station for Facings up to 300 mm Long
- Consistent Sewing Performance on Different Types of Fabrics
- The User-friendly Touch Screen Control Panel Makes it Easy to Change all Stitching Parameters Including the Stitch Length
- AC Servo Motor Combined with PLC Control System Ensures Reliable Operation of the Machine under Difficult Operating Conditions
- Backtacking
- Diagnostic System
The Stitching Length can be Adjusted from the Panel or Controlled Automatically by a Photocell

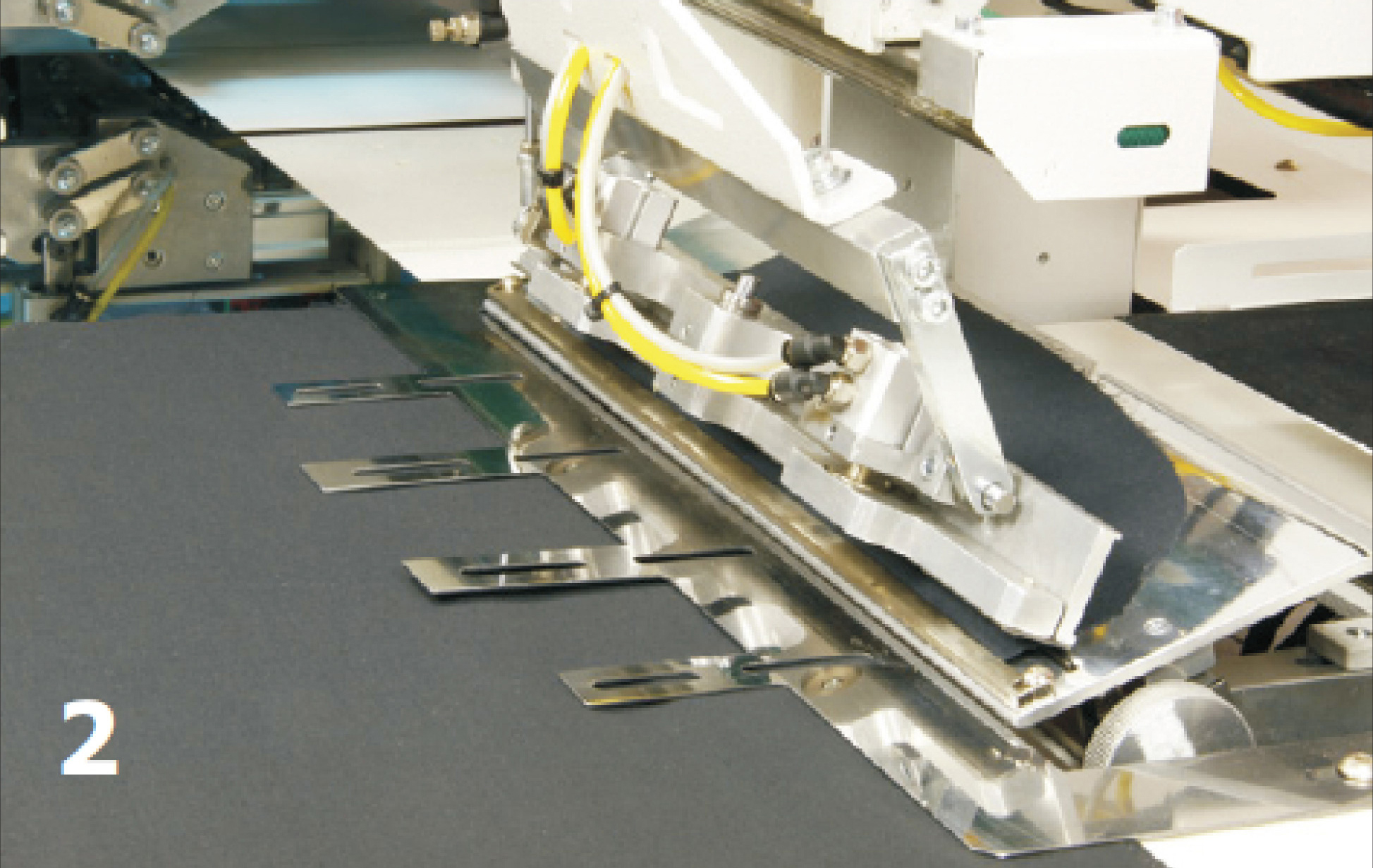

Folding Station for Facings up to 300 mm Long

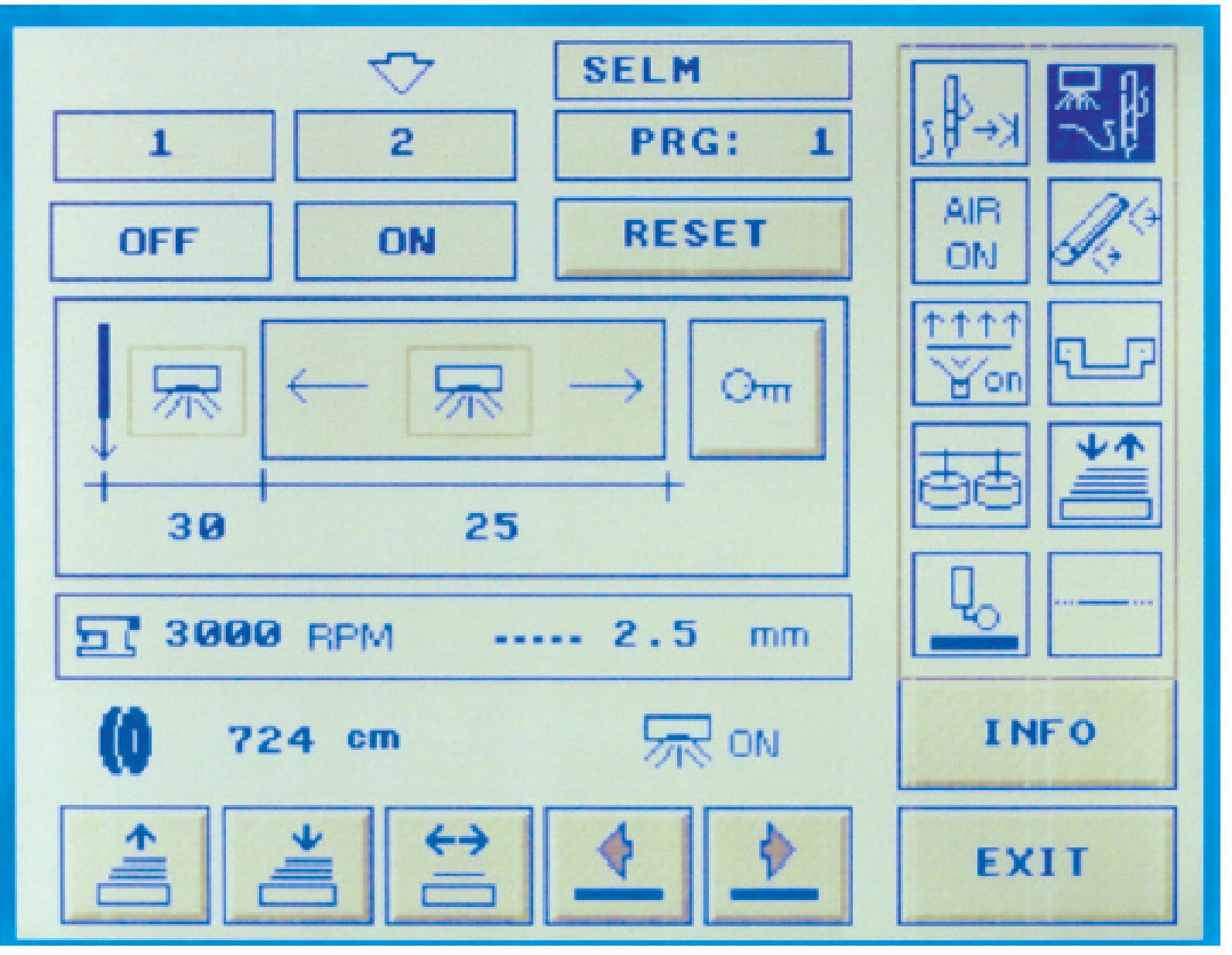

User-friendly Touch Screen Control Panel
Standard Accessories
- Vacuum System for Connecting to Internal Source
- Stacker

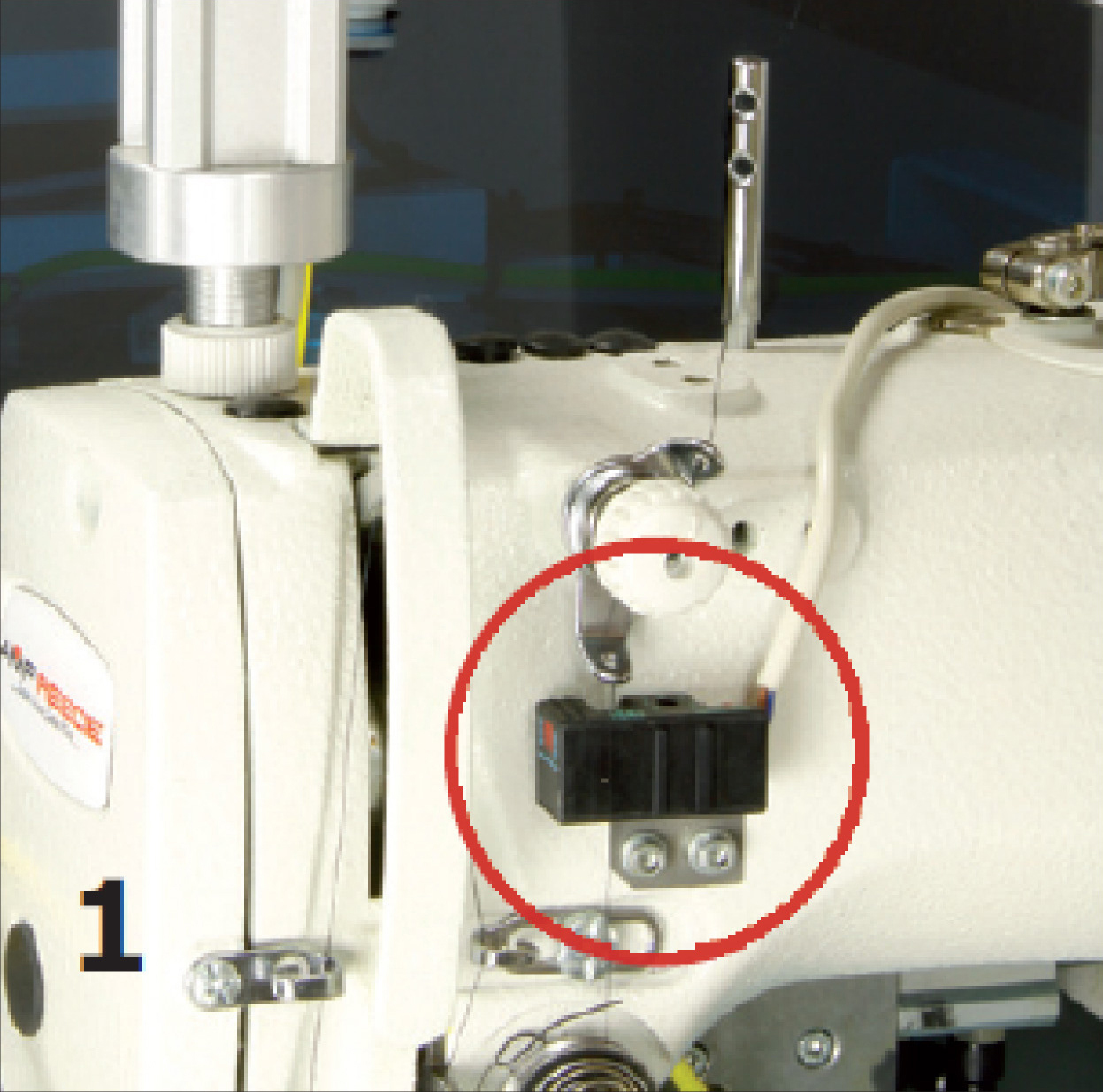

- Top Thread Monitor
- Laser Marking Light
- Fabric Mover
Optional Accessories
- Extra Laser Light for Marking Labels
- Special Folding Station for up to 400 mm Length
- Vacuum Motor
- Label Feeder
Specifications
| Sewing Head | Brother 7200 Lockstitch |
|---|---|
| Sewing Speed | Max 4,800 spm |
| Max. Seam Length | Upto 420 mm |
| Folding Length | Upto: 300 mm (400 mm Optional) |
| Stitch Length | 0.5 - 6 mm |
| Memory | 40 |
| Productivity | 5,000 - 5,800 pieces / 8 hours |
