中文 Decorative Hand Stitching MachineAMF Reece DECO 2000Y
Decorative Hand Stitching Machine for "True Hand Stitching"
- The AMF Reece renowned electronically controlled Deco 2000 machine duplicates the needlework of a skilled hand sewer by sewing pick stitch, saddle stitch and long/short variations.
- The machine, newly equipped with a thread trimming mechanism, can now sew with a standard cone thread and is easily controlled by an user- friendly touch screen.
- A customized selection of decorative stitching also provides the operator with total flexibility and versatility with a wide range of applications.
DECO2000Y is the only “Real Imitation Hand Stitching Machine” using the unique double pointed floating needle mechanism.
The only “Real Imitation Hand Stitching Machine” available
DECO2000Y is the only “Real Imitation Hand Stitching Machine” using the unique double pointed floating needle mechanism.
No Need for Special Waxed Threads
DECO2000Y's thread trimming mechanism allows the machine to handle standard polyester/ nylon cone threads.You can use both the pre-cut waxed silk thread and standard polyester / nylon cone threads.
Ten Times More Productive than Hand Sewers
High Sewing Speed up to 400 spm makes DECO2000Y ten times more productive than hand sewers, providing ensuring consistent quality.
- Wide Range of Applications
- Unique Floating Needle System for "True Hand Stitch"
- Excellent Performance
- Thread Trimming Mechanism Compatible with Standard Threads
- No Need for Special Waxed Threads
- High Sewing Speed - Ten Times More Productive
- Backtacking & Condensed Stitching Function
- Needle Positioning Motor
- Customized Style Stitching
- Reversed Stitching Function
- Edge Material Gauge
- Improved Needle Guidance
- Easy Maintenance
- PLC Microprocessor Control with Graphic Touch Screen
Wide Range of Applications
The DECO2000Y machine can be used for a wide range of applications such as men‘s/ladies‘ tailored jackets, suits, overcoats, leather wear, ladies‘ blouses and in the car industry.
Unique Floating Needle System for "True Hand Stitch"
Floating Needle System was developed by AMF Reece to produce a “true hand stitch”. The machine uses a double pointed needle which has an eye in the middle. By the use of two needle bars, one above and one below the work plate, a length of thread is passed through the material duplicating the hand stitch with flawless consistency and incomparable speed.
Excellent Performance
The Only “Real Imitation Hand Stitching Machine” Available.
High and consistent quality on all types of fabric is assured by using the double pointed needle, which is passed through the fabric between opposed needle bars. Other machines of this type have a single needle bar and an “open eye hook” needle. This can cause problems in more delicate fabrics by snagging the fibers.
The DECO2000Y machine is the only “Real Imitation Hand Stitching Machine” available.
Thread Trimming Mechanism Compatible with Standard Threads
The thread trimming mechanism allows the machine to handle standard polyester/ nylon cone threads.
The trimming length is 400 - 900 mm depending on the sewn garment and can only be used when sewing the standard saddle stitch and its long/short variations.
The required thread length is adjusted on the touch screen display.
Pre-cut threads can also be used by turning the thread trimming mechanism off.
No Need for Special Waxed Threads
Either standard polyester/nylon cone or pre-cut waxed silk thread can be used depending on the machine modification and application.
The use of the standard thread eliminates color matching issues; threads are available in a wider range of sizes and can be also employed in other garment applications.
When sewing the true “pick stitch”, it is recommended to use the pre-cut waxed silk thread which is specially twisted to give the hand stitch appearance.
High Sewing Speed - Ten Times More Productive
High Sewing Speed up to 400 spm makes the Deco 2000 ten times more productive than hand sewers, providing ensuring consistent quality.
Backtacking & Condensed Stitching Function
No longer necessary to do separate bar tacking operations
It is no longer necessary to do separate bar tacking operations. To secure the beginning and end of the stitching the operator can take the advantage of condensed stitching or backtacking functions. Both are easily activated by a special pedal and the stitching parameters are set on the touch screen display.
Needle Positioning Motor
The needle positioning motor automatically moves the needle to the correct position for turning the clothing garment. The operator can also automatically position the needle to enable threading.
Customized Style Stitching
Unique customized decorative style stitching can be easily adjusted on the touch screen, in addition to the pick stitch, saddle stitch and long/short variations.
Each custom stitch pattern comprises of a sequence of 10 different upper and 10 different lower stitch lengths.
Reversed Stitching Function
Any type of stitches can be reversed by a simple touch of a button placed on the work desk, at any speed and time during the sewing cycle (e.g. at the jacket lapel break point). This increases productivity and minimizes thread waste.

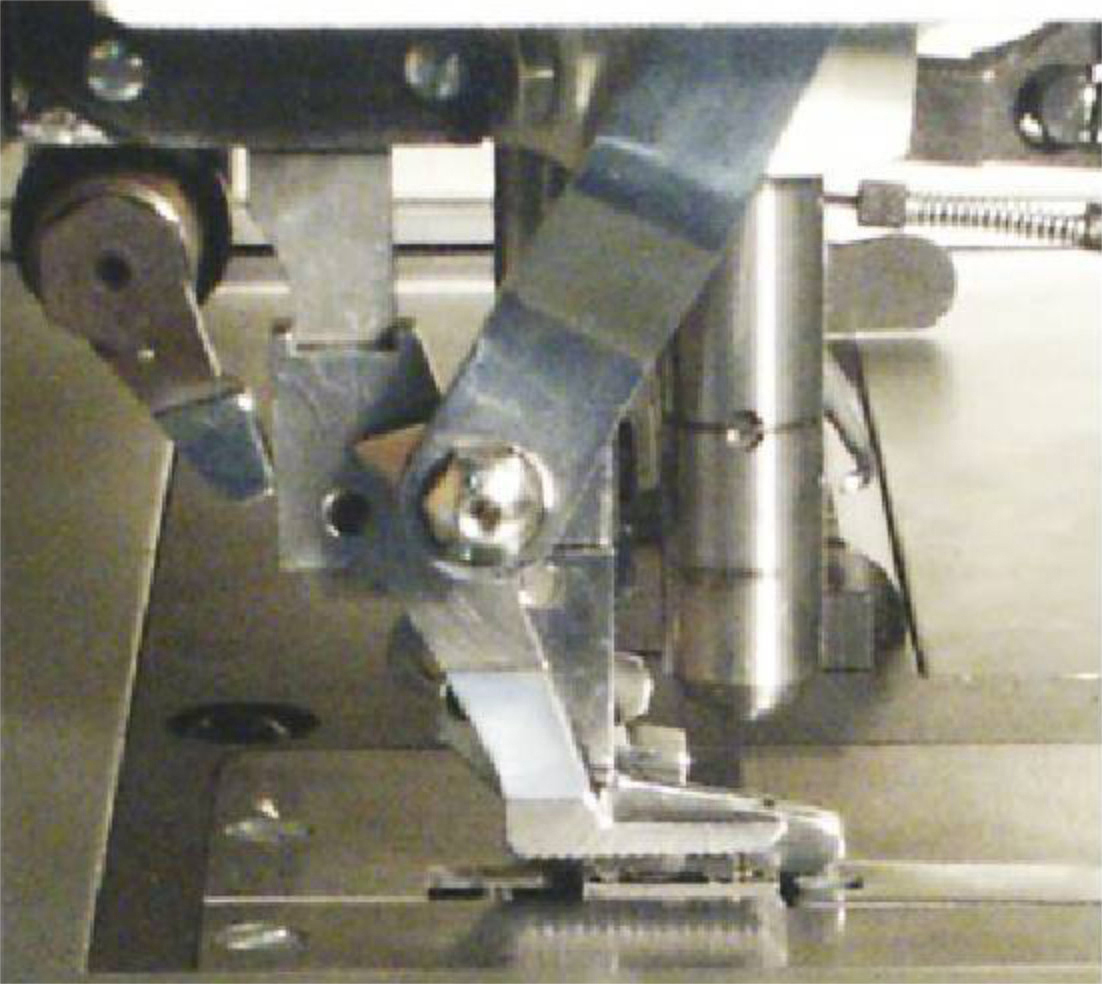

Edge Material Gauge
This special gauge ensures straight stitching along the material edge.
It is especially recommended when sewing to the material edge, for example with the pick stitch application on men‘s jackets. The minimum distance from the garment edge is 1 mm.

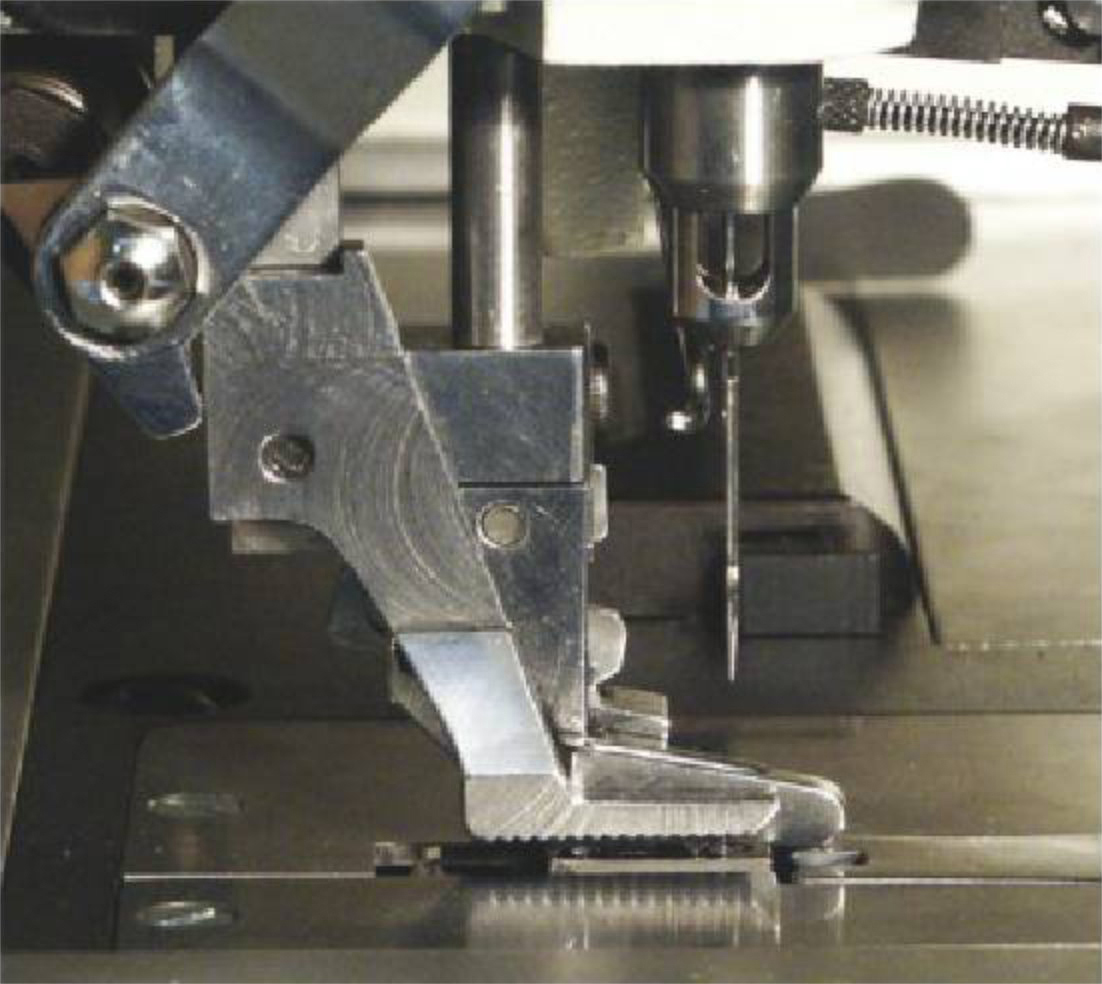

Improved Needle Guidance
New design of the throat plate and the clamp feet improves the needle guidance and minimizes the skip stitching. It also significantly helps to sew the stitches more close to the material edge.
Easy Maintenance
Thanks to the new design of the bedplate, the maintenance of the sewing area is now very comfortable. The operator can very easily pull off the magnetic left bended throat plate from the machine and enter the sewing area if nedeed.
PLC Microprocessor Control with Graphic Touch Screen
The display provides the operator with a user-friendly working environment.
All operations such as stitch type, sewing speed, stitch length and thread trimming time etc., are performed using easily understood symbols, which require no language translation.
Touch Panel Screen
- Home Position
- Thread Trimming Selection
- Display Machine Status
- Stitch Length Indicator
- Sewing Speed Indicator
- Stitch Style Indicator
- Counter
- Thread Trimming Time Indicator
- Sewing Speed Adjustment
- Stitching & Trimming Adjustments
